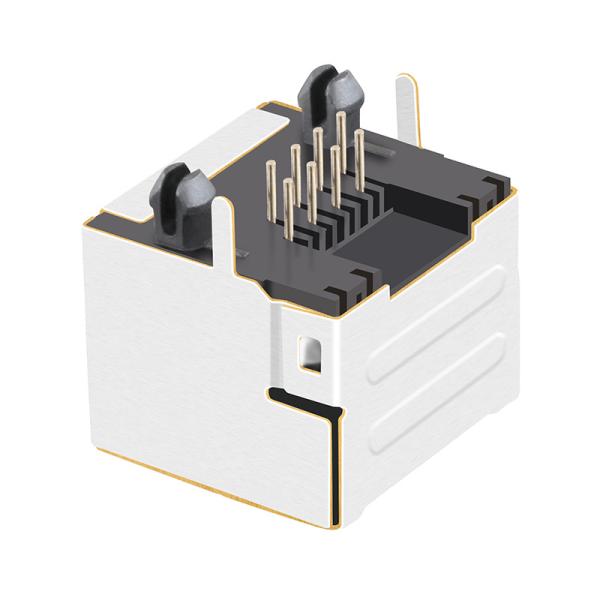

1-406541-5 / 1-406541-8 Single Port RJ45 Female Connector 8P8C LPJE101DNL

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 14065415 14065418 Single Port RJ45 Female Connector 8P8C LPJE101DNL
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : 1-406541-5

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 250000-320000/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Part Number : 1-406541-5 / 1-406541-8

Connector Type : RJ45 (8P8C)

PIN Type : THT Solder

Performance Category : Cat 5

Temperature : -45°C to +85°C

Documents : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

Features of 1-406541-5 / 1-406541-8 8P8C RJ45 Connector:

Category	Attribute	Value
Basic Information	TE Part Number	1-406541-5/1-406541-8
	Product Type	RJ45 Connector Assembly
	LAN Category	Cat 5
Structural Features	Port Configuration	Single Port
	Port Matrix Configuration	1 x 1
	Positions / Contacts	8P8C (8 Position / 8 Contact)
	Shielded	Yes
	Magnetics	Without Magnetics
	LED Indicator	Without LED
	Profile	Standard Profile
	Orientation	Inverted - Latch Up
Body Features	Housing Color	Black
	Housing Material	High-Temperature Thermoplastic
	Flammability Rating	UL 94 V-0
Contact Features	Contact Material	Phosphor Bronze
	Contact Mating Area Plating	Gold
Electrical Characteristics	Current Rating	1.5 A / 0.2 A
Termination Features	Termination Method	Through Hole - Solder
Mechanical Attachment	Mounting Type	PCB Mount
	Mounting Angle	Right Angle
Dimensions	Connector Height	13.34 mm (.525 in)
	Recommended PCB Thickness	1.57 mm (.062 in)
	Pin Pitch	1.02 mm (.04 in)
Usage Conditions	Operating Temperature Range	-45°C to +85°C
Packaging Information	Packaging Method	Box & Tray
Compliance	RoHS/ELV Compliant	Yes

1-406541-5 / 1-406541-8 Single Port RJ45 Female Connector 8P8C LPJE101DNL
